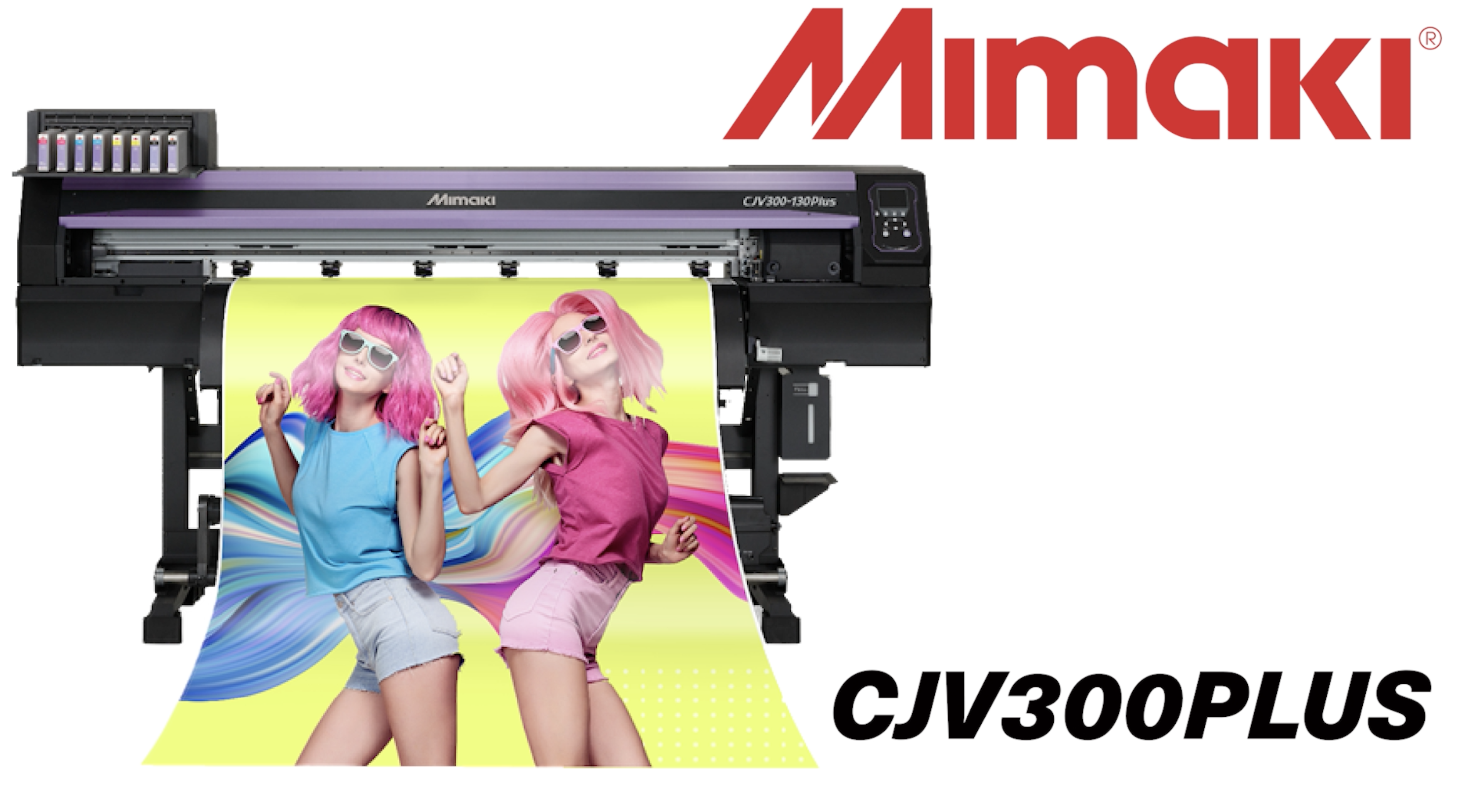

This series delivers an array of applications to optimize workflows. Equipped with innovative technologies for faster throughput and on-board cutting, you can create indoor and outdoor graphics using eco-solvent inks or textile, apparel and soft signage using dye-sublimation inks.
Available in 54” and 64” widths with print speeds up to 1,140 SqFt/Hr
Print and cut capability in one unit
Ability to pre-cut before printing to prevent film separation
Choice of eco-solvent ink or dye-sublimation ink sets:
Eco-solvent: 10 color options including Silver, White, Orange and Light Black inks
Dye-sublimation: 6 color options including Light Blue and Light Magenta inks
ID Cut Function for automation and unattended operation
Optional economical 2-liter bulk ink system for long running jobs
Even ink drying with three-way intelligent heater
Reusable Mimaki Eco-Cartridge on SS21, BS3 and BS4 eco-solvent inks
Automatic media take-up reel
USB/Ethernet connectivity
RIP software RasterLink6 included
Our Core Technologies
Waveform Control
Mimaki Advanced Pass System
Intelligent Heaters
Nozzle Check Unit
Nozzle Recovery System
Mimaki Bulk Ink System
Uninterrupted Ink Supply System
Mimaki Circulation Technology
Mimaki Fine Diffusion
Continuous Mark Detect
Half Cut
Over Cut
Zero Margin Mark
Applications
Specifications
Printhead
Two on-demand piezo heads in a staggered array
Print resolution
360 dpi, 540 dpi, 720 dpi, 1,080 dpi, 1,440 dpi
Print speed (4 color mode)
CJV300-130 Plus: up to 991.4 SqFt/Hr (92.1 m2/h) CJV300-160 Plus: up to 1,139.9 SqFt/Hr (105.9 m2/h)
US & Canada- SS21, ES3, Sb54 | Mexico, Central & South America- SS21, ES3, BS3, BS4, Sb54
Cut Speed
11.8″ sec (30 cm/sec)
Maximum Cut pressure (Metric grams)
450
Cutter Types
Eccentric cutter, Blade for small character, Blade for reflective sheet, Blade for fluorescent sheet, Blade for PVC with low-pressure, Ball point pen
Interface
Ethernet, USB 2.0
Power supply
Single phase (AC100-120 / 200-240V±10%, 50/60Hz±1Hz) x2
Power consumption
AC100V: 1.44kW or less x2 | AC200V: 1.92kW or less x2
Operational environment
Temperature 68° – 86° F (20-30° C) Humidity: 35–65 % RH (Non condensing)
Dimensions (W × D × H)
CJV300-130 Plus: 99″ x 28″ x 55″ (251.5 x 71.1 x 139.7 cm) CJV300-160 Plus: 109″ x 28″ x 55″ (276.9 x 71.1 x 139.7 cm)
Weight
CJV300-130 Plus: 368 lbs. (167 kg) CJV300-160 Plus: 392 lbs. (178 kg)
Certifications
VCCI class A, FCC class A, Compliant with UL 60950-1, ETL, CE Marking (EMC, Low voltage, and Machinery directive) /RoHS/ CB Report, REACH, ENERGY STAR®, RCM
Inks
Eco Solvent ink (SS21)
Cyan
Magenta
Yellow
Black
Light Cyan
Light Magenta
Light Black
Orange
White
Silver
2L MBIS Pack*
SPC-0588C
SPC-0588M
SPC-0588Y
SPC-0588K
SPC-0588LC
SPC-0588LM
SPC-0588LK
SPC-0588OR
220ml cartridge
SPC-0504W-2
SPC-0504Si
600ml eco cartridge
SS21-C-60
SS21-M-60
SS21-Y-60
SS21-K-60
SS21-LC-60
SS21-LM-60
SS21-LK-60
SS21-OR-60
Eco Solvent ink (ES3)
Cyan
Magenta
Yellow
Black
Light Cyan
Light Magenta
White
440ml cartridge
SPC-0440C
SPC-0440M
SPC-0440Y
SPC-0440K
SPC-0440LC
SPC-0440LM
220ml cartridge
SPC-0433W-2
Dye Sublimation ink (Sb54)
Blue
Magenta
Yellow
Black
Light Blue
Light Magenta
2L MBIS Pack*
SB54-BLT-2L
SB54-MT-2L
SB54-YT-2L
SB54-KT-2L
SB54-LBT-2L
SB54-LMT-2L
440ml cartridge
SB54-BLT-44
SB54-M-44
SB54-Y-44
SB54-K-44
SB54-LBL-44
SB54-LMT-44
Solvent ink (BS3)
Cyan
Magenta
Yellow
Black
2L MBIS Pack*
SPC-0693C
SPC-0693M
SPC-0693Y
SPC-0693K
600ml eco cartridge
SPC-0667C
SPC-0667M
SPC-0667Y
SPC-0667K
Solvent ink (BS4)
Cyan
Magenta
Yellow
Black
2L MBIS Pack*
BS4-C-2L
BS4-M-2L
BS4-Y-2L
BS4-K-2L
600ml eco cartridge
BS4-C-60
BS4-M-60
BS4-Y-60
BS4-K-60
*Inks sold vary by county, see specification chart above for details.
Inks
Eco Solvent ink (SS21)
2L MBIS Pack*
Cyan:
SPC-0588C
Magenta:
SPC-0588M
Yellow:
SPC-0588Y
Black:
SPC-0588K
Light Cyan :
SPC-0588LC
Light Magenta :
SPC-0588LM
Light Black :
SPC-0588LK
Orange:
SPC-0588OR
:
:
_ _
220ml cartridge
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
White:
SPC-0504W-2
Silver:
SPC-0504Si
600ml eco cartridge
Cyan:
SS21-C-60
Magenta:
SS21-M-60
Yellow:
SS21-Y-60
Black:
SS21-K-60
Light Cyan:
SS21-LC-60
Light Magenta:
SS21-LM-60
Light Black:
SS21-LK-60
Orange:
SS21-OR-60
:
_ _
:
_ _
*Inks sold vary by county, see specification chart above for details.
Eco Solvent ink (ES3)
440ml cartridge
Cyan:
SPC-0440C
Magenta:
SPC-0440M
Yellow:
SPC-0440Y
Black:
SPC-0440K
Light Cyan :
SPC-0440LC
Light Magenta :
SPC-0440LM
:
_ _
:
_ _
:
_ _
:
_ _
220ml cartridge
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
White:
SPC-0433W-2
:
_ _
*Inks sold vary by county, see specification chart above for details.
Dye Sublimation ink (Sb54)
2L MBIS Pack*
Cyan:
SB54-BLT-2L
Magenta:
SB54-MT-2L
Yellow:
SB54-YT-2L
Black:
SB54-KT-2L
Light Blue:
SB54-LBT-2L
Light Magenta:
SB54-LMT-2L
:
_ _
:
_ _
:
_ _
:
_ _
440ml cartridge
Cyan:
SB54-BLT-44
Magenta:
SB54-M-44
Yellow:
SB54-Y-44
Black:
SB54-K-44
Light Blue:
SB54-LBL-44
Light Magenta:
SB54-LMT-44
:
_ _
:
_ _
:
_ _
:
_ _
*Inks sold vary by county, see specification chart above for details.
Solvent ink (BS3)
2L MBIS Pack*
Cyan:
SPC-0693C
Magenta:
SPC-0693M
Yellow:
SPC-0693Y
Black:
SPC-0693K
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
600ml eco cartridge
Cyan:
SPC-0667C
Magenta:
SPC-0667M
Yellow:
SPC-0667Y
Black:
SPC-0667K
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
*Inks sold vary by county, see specification chart above for details.
Solvent ink (BS4)
2L MBIS Pack*
Cyan:
BS4-C-2L
Magenta:
BS4-M-2L
Yellow:
BS4-Y-2L
Black:
BS4-K-2L
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
600ml eco cartridge
Cyan:
BS4-C-60
Magenta:
BS4-M-60
Yellow:
BS4-Y-60
Black:
BS4-K-60
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
*Inks sold vary by county, see specification chart above for details.
